VM600 Series Micro Variable Frequency Drives | AC Drive

VM600 Series Micro Variable Frequency Drives, AC Drive

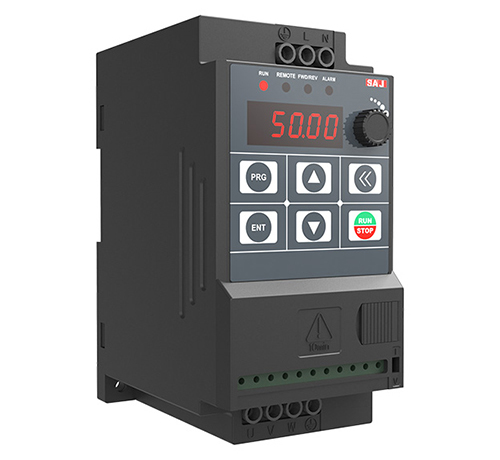

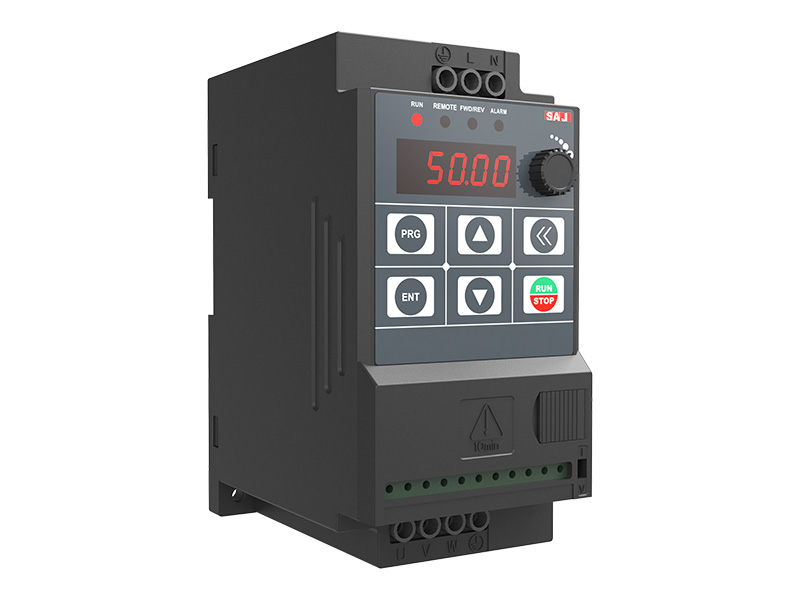

The VM600 series micro variable frequency drives are newly launched simple AC drives and feature a smaller size, easier adjustment and better flexibility, making them ideal for meeting variable-speed and control requirements for small and medium-sized mechanical equipment.

Power range

220V single-phase input: 0.75-2.2kW
380V three-phase input: 2.2-15kW

Features

The variable frequency drive has a small footprint.
They are highly cost effective, making them ideal for meeting speed regulation requirements between 0-400Hz.
All components and processing techniques conform to RoHS standards.
Multiple protective functions, including temperature, voltage, current and overload, ensure operational safety.
Easy installation: DIN rail mounting or wall-mounting.

Applications

The VM600 series micro variable frequency drives are widely used in negative-pressure fans/blowers, packaging machinery, food machinery, wood-working machines, small production lines, small water pumps, and other small and medium-sized machinery.

Specifications

Item		Specifications
Control	Method	V/F control
	Starting torque	0.5Hz/100%
	Speed variation range	1:50
	Speed regulation of the rated speed	±1%
	Carrier frequency	0.5kHz ~ 16kHz; Auto regulation available according to the load characteristic.
	Overload capacity	G type: 150% rated current for 60s,180% rated current for 1s
	Torque boost	0.0% auto boost; manual boost 0.1% ~ 30.0%
Input & Output	Input voltage range	220V/380V; fluctuation range: ±15%
	Input frequency range	50/60Hz; fluctuation range: ±5%
	Output voltage range	0-input voltage, deviation< 5%
	Output frequency range	V/F: 0-400Hz
Run control	Run command channel	3 channels: operation panel, control terminal or serial communication setting. Switching is available by various means
	Frequency source	Setting method: digital, panel potentiometer, analog voltage, analog current or serial communication.
	Input terminals	◆ 4 digital inputs ◆ 1 analog input
	Output terminals	◆ 1 relay output
Display & Keypad	LED display	5-digit LED display
Display & Keypad	Parameter locking	Parameters can be set as read only in case of misoperation
Environment	Operation place	Indoor, no exposure to the direct sunlight, no dust, corrosive gas, flammable gas, oil mist, vapor, dropping water or salt.
	Altitude	< 1000m, derating 1% per 100m above 1000m
	Operating temperature	-10℃～40℃; up to 50℃ with derating 1% per 1℃ above 40℃.
	Humidity	≤95%RH, non-condensing
	Vibration	Vibration acceleration< 0.6g
	Storage temperature	-40℃~70℃, temperature change rate< 1℃/min

Models

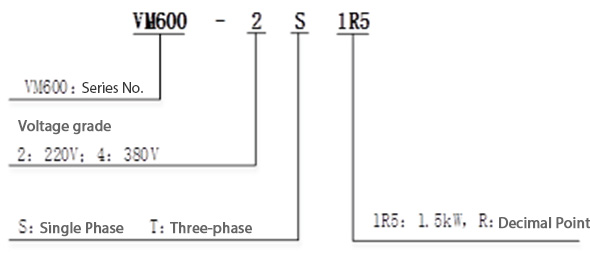

Voltage grade	Power		Rated intput current(A)	Rated output current(A)	Series No.	2:220V 4:380V	S:single phase	Adaptive motor power
Voltage grade	KW	HP	Rated intput current(A)	Rated output current(A)	Series No.	2:220V 4:380V	T: three-phase	Adaptive motor power
Single-phase 220V	0.75	1.0	8.2	4	VM600	2	S	R75
	1.5	2.0	14	7	VM600	2	S	1R5
	2.2	3.0	23	9.6	VM600	2	S	2R2
Three-phase 380V	2.2	3.0	5.8	5.1	VM600	4	T	2R2
	4	5.5	10.5	9	VM600	4	T	4
	5.5	7.5	14.6	13	VM600	4	T	5R5
	7.5	10.2	20.5	17	VM600	4	T	7R5
	11	15	26	25	VM600	4	T	11
	15	20	35	32	VM600	4	T	15

Dimensions

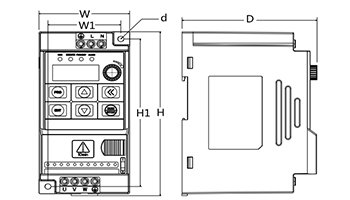

AC Drive Model	Size (mm)			Installation dimension (mm)		Opening size (mm)
	H	W	D	H1	W1	d
VM600-2SR75	134	69	104	123	55	5
VM600-2S1R5
VM600-2S2R2	142	72	116	130	59	5
VM600-4T2R2

Control characteristic	Control Mode	V/F Control
	Starting Torque	0.5Hz/100%
	Speed Adjustment Range	1:20
	Speed Holding Precision	±1%
	Overload Capability	150 % rated current for 60s ; 180 % rated current for 1s
Input/output	Input Voltage	220V/380V±15%
	Input Frequency	50/60Hz, fluctuation range: ±5%
	Output Voltage	0-rated input voltage
	Output Frequency	0~400Hz
Input/output Terminals	Analog Input	1-way
	Digital Input	4-way
	Relay Output	1-way
	RS485 Communication Terminal	1-way
	Power Supply	1-way10V
Application environment	Attitude	Lower than 1000m, derated 1% for every 100m above 1000m
	Environment Temperature	-10℃～+ 40℃ (necessary to derate for 40℃～ 50℃)
	Humidity	≤95%RH, no water condensation
	Vibration	＜5.9m/s2 (0.6g)
	Storage Temperature	- 40℃～+ 60℃
