Frequency Conversion Multi-Pump System

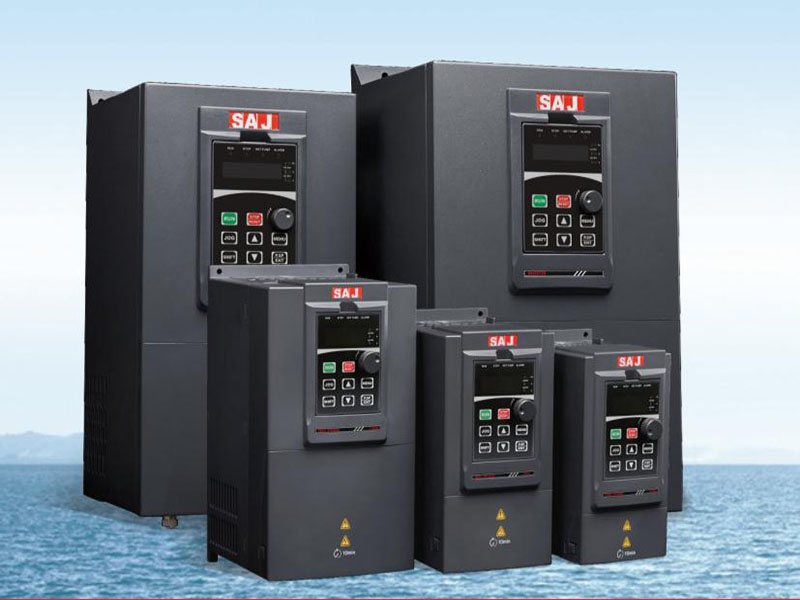

PDG10 Frequency Conversion Multi-Pump System

System Concept

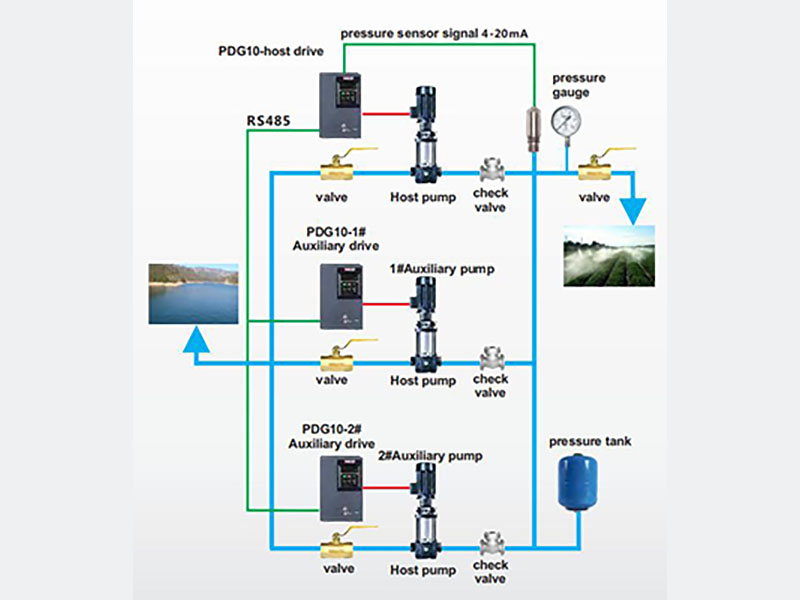

Every water pump has one VFD, which is connected to one another through CAN communication interfaces to accomplish the controlling of constant pressure water supply and alternative operation of water pumps.

Working Principle

After starting the system, one VFD drives one water pump to run. If the water is supplied in accordance with required amount, (i.e. feedback pressure is equal to the set pressure), then other water pumps retain in standby mode. At the same time, operator can set the alternation time for VFDs, enabling the VFDs to be operated alternatively.
When the required water is increased, the second water pump will be activated by another VFD. In the same manner, the third, fourth up to fifth pump will be operated until the water demand is met. Five VFDs can be connected and operated at the same time.
When the need of water amount is decreased, the pumps gradually enter sleep mode and stay in standby mode. And all pumps start sleep mode when water supply is no longer required.
In this multi-pump system, if any VFD failure occurs, it will be replaced by another VFD to ensure smooth operation.

Applications

All pumps from this system adopt soft starting function for system protection, providing high precision of constant pressure. The system is suitable for various applications, such as water supplying for high-end residential areas, commercial fields, agricultural irrigation, industrial production, etc.

Features

Communication control: the quantity of water pumps applied for water supplying can be increased and decreased according to the required water amount. These pumps are alternatively operated to balance working time.
Standby main drive function: if the main drive failure occurs, the system will automatically switch into standby main drive to ensure smooth operation of water supplying.
Light indication: indicator lights are connected to relay terminals, enable the operator to be informed with the working status of each VFD.
