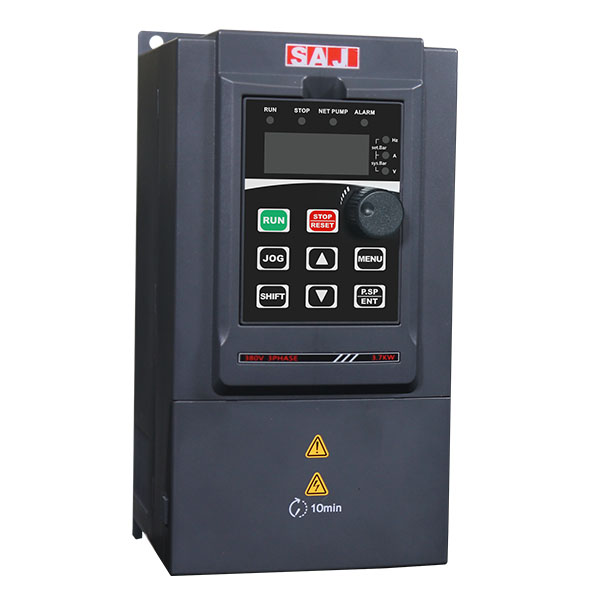

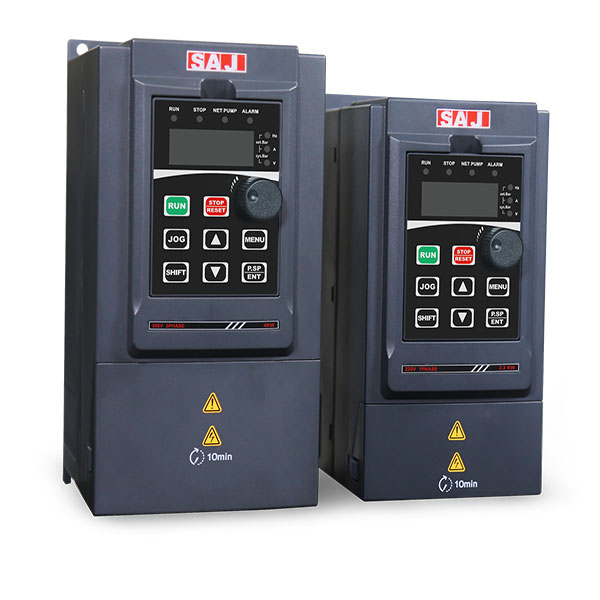

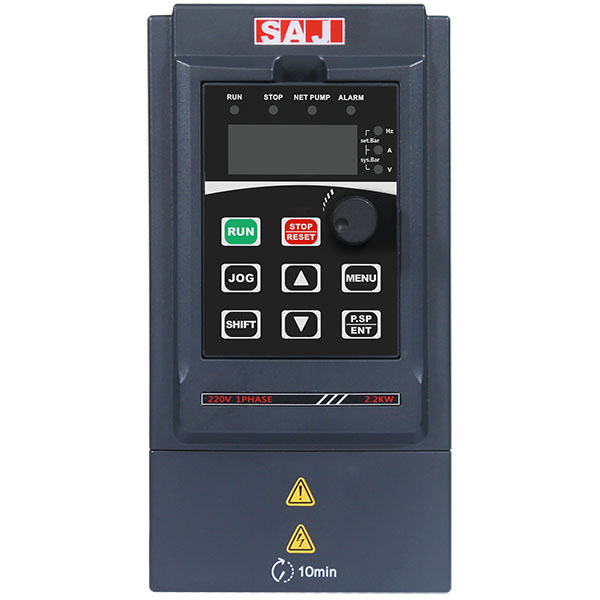

PDG10 Series Smart Effi Pump Drive

PDG10 series multi-purpose smart pump drive is typically designed to control the speed of water pump, which is independently developed by SAJ. It is commonly installed inside the electric control cabinet, can be connected to pressure sensor, remote pressure gauge, pressure switch and other various sensors. This smart pump drive is featured by easy operation, high reliability, low noise level and economic performance. Each pump can be outfitted with one frequency conversion pump drive, thus achieving smart online operation of multiple pumps.

Power range

220V single-phase input: 0.75-2.2kW
380V three-phase input: 0.75-400kW

Features

Two-way communication, strong expansibility
Standard RS485 and CAN communication interfaces, implementing online operation and monitoring
Standard two-way relay, one-drive-two with alternative operation
Standard two-way analog input, current and voltage can be switched randomly
Online operation of multiple pumps, can be adjusted by anyone
Easy connection of multiple pumps, up to 6 units
One-key pressure setting, easy to adjust macro parameters
Exclusive water supply function
Single-point/multi-point pressure testing, more accurate and energy saving
Targeted control: sleep mode, leakage, automatic reset operation
Special protection: dry run, antifreeze, high and low pressure alarm
Broad applicability
Versatile design
Wide power range 0.75-400kW
High stability and reliability
Open type panel control function, suitable for both fan and pump
Wide range of applications
Non-negative pressure water supply system
Secondary pressure-boosting water supply system
Water treatment, circulating water system
Air conditioning cold and hot water system
Small water supply system for villa

Specifications

Voltage	Power		Rated	Rated output current (A)	Series	2:220V	S:single-phase	Adaptive
grade	Power		input current (A)		No.	4:380V	S:single-phase	motor
	KW	HP					T:three-phase	power
Single-phase 220V	0.75	1	8.2	4.5	PDG10	2	S	R75
	1.5	2	14	7	PDG10	2	S	1R5
	2.2	3	23	9.6	PDG10	2	S	2R2
Three-phase 380V	0.75	1	3.4	2.1	PDG10	4	T	R75
	1.5	2	5	3.8	PDG10	4	T	1R5
	2.2	3	5.8	5.1	PDG10	4	T	2R2
	4	5.5	10.5	9	PDG10	4	T	4
	5.5	7.5	14.6	13	PDG10	4	T	5R5
	7.5	10.2	20.5	17	PDG10	4	T	7R5
	11	15	26	25	PDG10	4	T	011
	15	20	35	32	PDG10	4	T	015
	18.5	25	38.5	37	PDG10	4	T	18R5
	22	30	46.5	45	PDG10	4	T	022
	30	40	62	60	PDG10	4	T	030
	37	50	76	75	PDG10	4	T	037
	45	60	92	91	PDG10	4	T	045
	55	70	113	112	PDG10	4	T	055
	75	100	157	150	PDG10	4	T	075
	93	125	180	170	PDG10	4	T	093
	110	150	214	210	PDG10	4	T	110
	132	180	256	253	PDG10	4	T	132
	160	220	307	304	PDG10	4	T	160
	185	255	345	340	PDG10	4	T	185
	200	275	385	377	PDG10	4	T	200
	220	300	430	426	PDG10	4	T	220
	250	340	468	465	PDG10	4	T	250
	280	380	525	520	PDG10	4	T	280
	315	430	590	585	PDG10	4	T	315
	355	480	665	650	PDG10	4	T	355/400
	400	545	785	725	PDG10	4	T	400

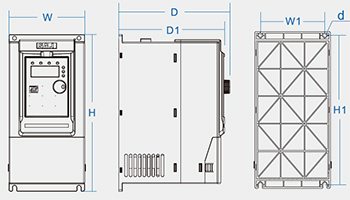

Dimensions

AC Drive Model	Size (mm)				Installation dimension (mm)		Opening size (mm)
	H	W	D	D1	H1	W1	d
PDG10-2SR75B-E	187	88	138	130	177	73	5
PDG10-2S1R5B-E
PDG10-2S2R2B-E
PDG10-4T004B-E	207	100	147	139	197	85	5

PDG10-4T5R5B-E	247	130	167	159	237	113	5

PDG10-4T7R5B-E
PDG10-2T5R5B-E	348	182	211	196	331	156	6
PDG10-2T7R5B-E
PDG10-4T011B-E
PDG10-4T015B-E
PDG10-4T18R5B-E	373	220	205	190	356	156	6


PDG10-4T030B-E	435	256	222	208	419	170	6

PDG10-4T037B-E
PDG10-4T045B-E	543	310	280	265	523	245	10
PDG10-4T055B-E
PDG10-4T075B-E	580	358	328	314	560	270	10
PDG10-4T093B-E
PDG10-4T110B-E

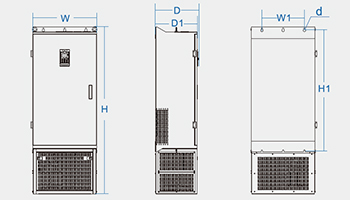

AC Drive Model	Size (mm)					Installation dimension (mm)		Opening size (mm)
	H	H2	W	D	D1	H1	W1	d
PDG10-4T132B-E	1199	350	502	355	342	842	320	10
PDG10-4T160B-E
PDG10-4T185B-E
PDG10-4T200B-E	1570	426	600	408	398	1147	400	12
PDG10-4T220B-E
PDG10-4T250B-E
PDG10-4T280B-E
PDG10-4T315B-E	1696	426	800	408	398	1266	520	12
PDG10-4T355B-E
PDG10-4T400B-E
