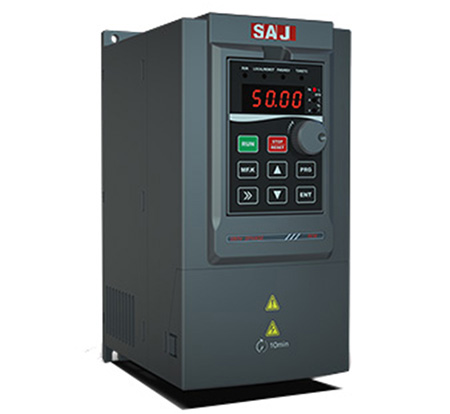

VM1000B Series General Purpose & High Performance Variable Frequency Drives

VM1000B Series General Purpose & High Performance Variable Frequency Drives

After undergoing an extensive technological upgrade and product optimization, the SAJ VM1000B series general purpose and high-performance variable frequency drives feature a better stability and reliability, ensuring a trusted operation during complex and changeable applications and requirements.

Power range

220V single-phase input: 0.75-2.2kW
220V three-phase input: 0.75-15kW
380V three-phase input: 0.75-400kW

Features
  • The wide output frequency range of 0-1000Hz meets most general requirements.
  • The excellent protection performance and independent air duct design allow for flexibility and adaptability to different environments.
  • The SAJ VM1000B series variable frequency drives are versatile, capable of meeting requirements for a wide application range.
  • Multiple protective functions, including temperature, voltage, current, and overload, ensure operational safety.
  • Installation is easy with a wall-mounting installation. A serial port upgrade is available and fan changeover is exceptionally easy.
  • All part selection and processing techniques meet RoHS standards.
Applications

The SAJ VM1000B series general purpose and high-performance variable frequency drives are widely used in elevating machinery, tension mechanism, cutting and forming machinery, large inertia braking, metal processing machinery, wood working machinery, rubber plastic machinery, textile machinery and more.

Accessories

Tray, LCD keypad, extension cord

Specifications
Item Specifications
Control Method Speed sensorless vector control (SVC) V/F control
Starting torque 0.5Hz/150% 0.5Hz/100%
Speed variation range 1:100 1:50
Speed regulation of the rated speed ±0.5% ±1%
Carrier frequency 0.5kHz ~ 16kHz; Auto regulation available according to the load characteristic.
Overload capacity G type:150% rated current for 60s, 180% rated current for 1s P type:120% rated current for 60s, 150% rated current for 1s
Torque boost 0.0% auto boost; manual boost 0.1% ~ 30.0%
Input & Output Input voltage range 220V/380V; fluctuation range: ±15%
Input frequency range 50/60Hz; fluctuation range: ±5%
Output voltage range 0-input voltage, deviation< 5%
Output frequency range SVC:0-320Hz; V/F:0-1000Hz
Run control Run command channel 3 channels: operation panel, control terminal or serial communication setting. Switching is available by various means
Frequency source Setting method: digital, panel potentiometer, analog voltage, analog current or serial communication. Switching is available by various means
Auxiliary frequency source A variety of auxiliary frequency sources available, enabling frequency synthesis or frequency trimming.
Input terminals ◆ 6 digital inputs ◆ 2 analog inputs
Output terminals ◆ 1 open collector output ◆ 2 relay outputs (1 output for < 7.5kW) ◆ 2 analog outputs (1 output for < 7.5kW)
Functions DC braking function Braking time: 0.0s ~ 100.0s, braking action current valve: 0.0% ~ 100.0%
V/F curve 3 types: linear, multipoint, square
Acceleration/Deceleration settings Linear or S-curve; four sets of accel/decel times; time range: 0.0 ~ 6500.0s
Simple PLC, multispeed 16 preset speeds available by built-in PLC or control terminal
Built-in PID Enabling process control and closed-loop control system
AVR Automatically maintaining output terminal voltage at a set value under varying load and operating temperature.
Overvoltage/overcurrent stall prevention Automatically limiting the operating voltage and current to prevent tripping caused by frequent overvoltage or overcurrent
Fast current-limiting Minimizing the overcurrent fault and improving operation stability
Torque limit and control Automatically limiting the operating torque to prevent tripping caused by frequent overcurrent
POST Ground connection, short circuit, etc.
Timing control Time range: 0h ~65535h
Protection Phase loss in the input/output, overcurrent, overvoltage, undervoltage, overheat and overload protection, power-on relay fault detection, etc.
Display & Keypad LED display 5-digit LED display
Parameter locking Parameters can be set as read only in case of misoperation
MF.K key Programmable key: command channel switching, CW/CCW running, inching option, menu mode switching
Environment Operation place Indoor, no exposure to the direct sunlight, no dust, corrosive gas, flammable gas, oil mist, vapor, dropping water or salt.
Altitude < 1000m, derating 1% per 100m above 1000m
Operating temperature -10℃~40℃; up to 50℃ with derating 1% per 1℃ above 40℃.
Humidity ≤95%RH, non-condensing
Vibration Vibration acceleration< 0.6g
Storage temperature -25℃~+60℃
Certificates

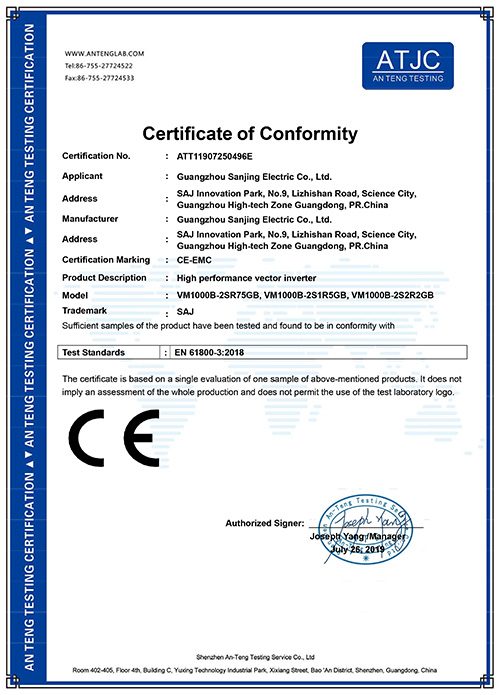

  • ATT11907250496E EMC license
    ATT11907250496E EMC license

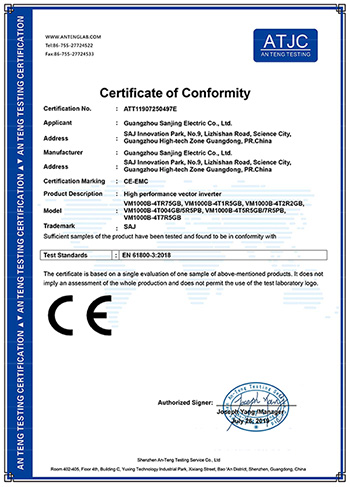

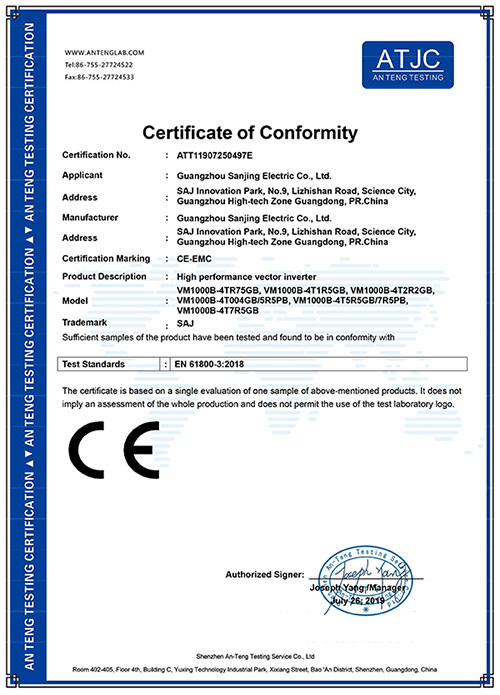

  • ATT11907250497E EMC license
    ATT11907250497E EMC license

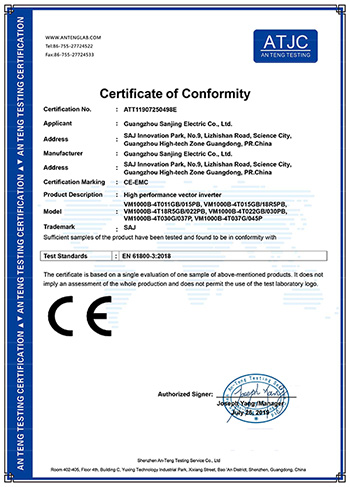

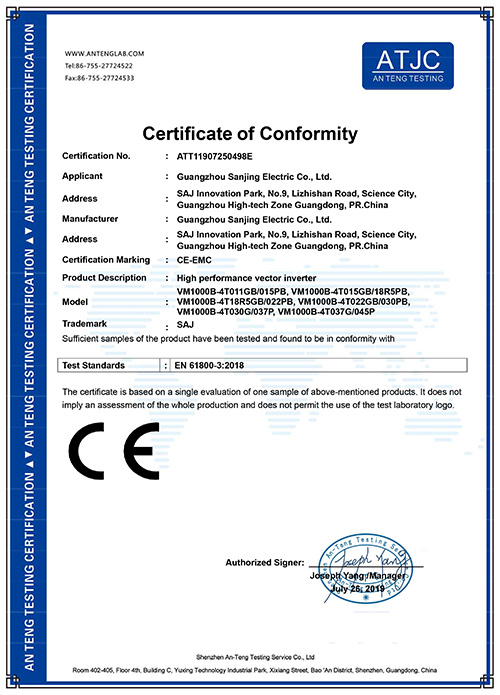

  • ATT11907250498E EMC license
    ATT11907250498E EMC license
  • ATT11907250499E EMC license
    ATT11907250499E EMC license

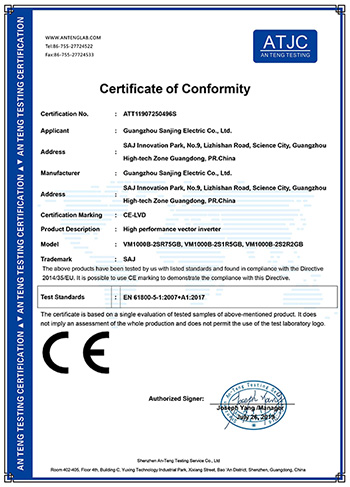

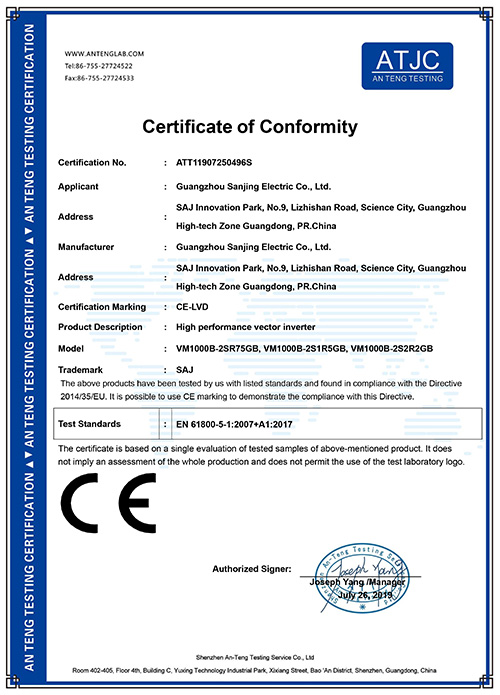

  • ATT11907250496S LVD license
    ATT11907250496S LVD license

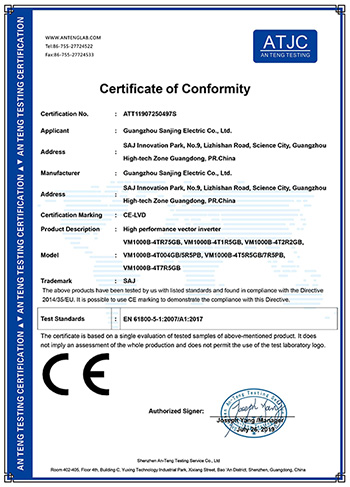

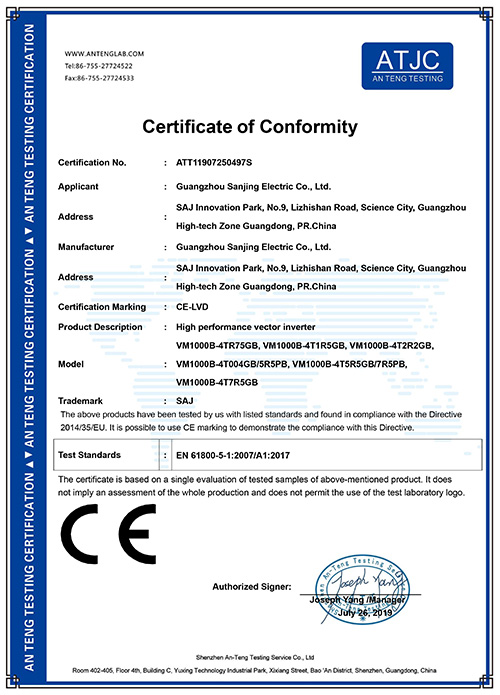

  • ATT11907250497S LVD license
    ATT11907250497S LVD license

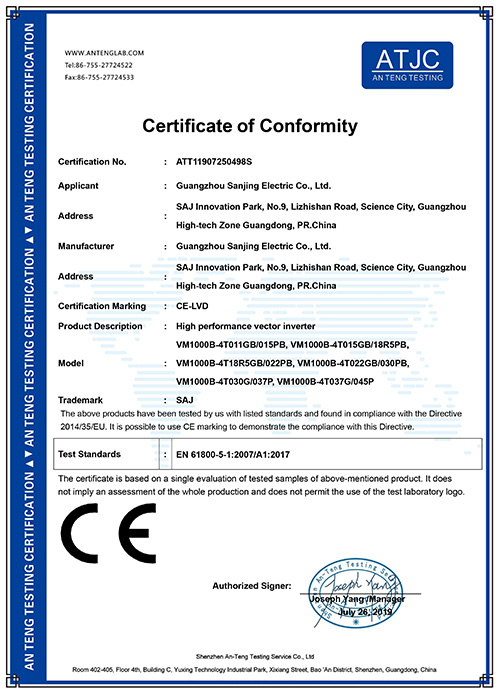

  • ATT11907250498S LVD license
    ATT11907250498S LVD license
  • ATT11907250499S LVD license
    ATT11907250499S LVD license
Models
Voltage
grade		 Power Rated
intput current (A)		 Rated output current (A) Series
No.		 2:220V
4:380V		 S:single-phase Adaptive
motor
power		 G: general
type		 B:integrated
with brake
function
KW HP T:three-phase P: fan type
Single-phase 220V 0.75 1.0 8.2 4.5 VM1000B 2 S R75 G B
1.5 2.0 14 7 VM1000B 2 S 1R5 G B
2.2 3.0 23 9.6 VM1000B 2 S 2R2 G B
Three-phase 220V 0.75 1.0 5 3.8 VM1000B 2 T R75 G B
1.5 2.0 5.8 5.1 VM1000B 2 T 1R5 G B
2.2 3.0 10.5 9 VM1000B 2 T 2R2 G B
4 5.5 14.6 13 VM1000B 2 T 4 G B
5.5 7.5 26 25 VM1000B 2 T 5R5 G B
7.5 10.2 35 32 VM1000B 2 T 7R5 G B
11 15 46.5 45 VM1000B 2 T 11 G B
15 20 62 60 VM1000B 2 T 15 G /
Three-phase 380V 0.75 1.0 3.4 2.1 VM1000B 4 T R75 G B
1.5 2.0 5 3.8 VM1000B 4 T 1R5 G B
2.2 3.0 5.8 5.1 VM1000B 4 T 2R2 G B
4/5.5 5.5/7.5 10.5/14.6 9/13 VM1000B 4 T 4/5R5 G/P B
5.5/7.5 7.5/10 14.6/20.5 13/17 VM1000B 4 T 5R5/7R5 G/P B
7.5 10.2 20.5 17 VM1000B 4 T 7R5 G B
11/15 15/20 26/35 25/32 VM1000B 4 T 011/015 G/P B
15/18.5 20/25 35/38.5 32/37 VM1000B 4 T 015/18R5 G/P B
18.5/22 25/30 38.5/46 37/45 VM1000B 4 T 18R5/022 G/P B
22/30 30/40 46.5/62 45/60 VM1000B 4 T 022/030 G/P B
30/37 40/50 62/76 60/75 VM1000B 4 T 030/037 G/P /
37/45 50/60 76/92 75/91 VM1000B 4 T 037/045 G/P /
45/55 60/70 92/113 91/110 VM1000B 4 T 045/055 G/P /
55/75 70/100 113/157 112/150 VM1000B 4 T 055/075 G/P /
75/90 100/125 157/180 150/170 VM1000B 4 T 075/090 G/P /
90/110 125/150 180/214 170/210 VM1000B 4 T 090/110 G/P /
110/132 150/180 214/256 210/253 VM1000B 4 T 110/132 G/P /
132/160 180/220 256/307 253/304 VM1000B 4 T 132/160 G/P /
160/185 220/255 307/345 304/340 VM1000B 4 T 160/185 G/P /
185/200 255/275 345/385 340/377 VM1000B 4 T 185/200 G/P /
200/220 275/300 385/430 377/426 VM1000B 4 T 200/220 G/P /
220/250 300/340 430/468 426/465 VM1000B 4 T 220/250 G/P /
250/280 340/380 468/525 465/520 VM1000B 4 T 250/280 G/P /
280/315 380/430 525/590 520/585 VM1000B 4 T 280/315 G/P /
315/355 430/480 590/665 585/650 VM1000B 4 T 315/355 G/P /
355/400 480/545 665/785 650/725 VM1000B 4 T 355/400 G/P /
400 545 785 725 VM1000B 4 T 400 G /

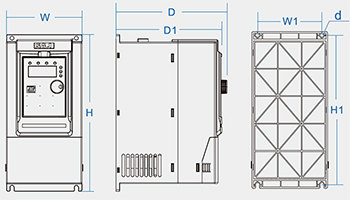

Dimensions
VM1000B Series General Purpose & High Performance Variable Frequency Drives
AC Drive Model Size (mm) Installation
dimension (mm)		 Opening size (mm)
H W D D1 H1 W1 d
VM1000B-2SR75GB-E 187 88 138 130 177 73 5
VM1000B-2S1R5GB-E
VM1000B-2S2R2GB-E
VM1000B-2TR75GB-E
VM1000B-2T1R5GB-E
VM1000B-4TR75GB-E
VM1000B-4T1R5GB-E
VM1000B-4T2R2GB-E
VM1000B-2T2R2GB-E 207 100 147 139 197 85 5
VM1000B-4T004GB/5R5PB-E
VM1000B-2T004GB-E 247 130 167 159 237 113 5
VM1000B-4T5R5GB/7R5PB-E
VM1000B-4T7R5GB-E
VM1000B-2T5R5GB-E 348 182 211 196 331 156 6
VM1000B-2T7R5GB-E
VM1000B-4T011GB/015PB-E
VM1000B-4T015GB/18R5PB-E
VM1000B-2T011GB-E 373 220 205 190 356 156 6
VM1000B-4T18R5GB/022PB-E
VM1000B-4T022GB/030PB-E
VM1000B-2T015GB-E 435 256 222 208 419 170 6
VM1000B-4T030G/037P-E
VM1000B-4T037G/045P-E
VM1000B-4T045G/055P-E 543 310 280 265 523 245 10
VM1000B-4T055G/075P-E
VM1000B-4T075G/093P-E 580 358 328 314 560 270 10
VM1000B-4T093G/110P-E
VM1000B-4T110G/132P-E
VM1000B Series General Purpose & High Performance Variable Frequency Drives
AC Drive Model Size (mm) Installation
dimension (mm)		 Opening size (mm)
H H2 W D D1 H1 W1 d
VM1000B-4T132G/160P-E 1199 350 502 355 342 842 320 10
VM1000B-4T160G/185P-E
VM1000B-4T185G/200P-E
VM1000B-4T200G/220P-E 1570 426 600 408 398 1147 400 12
VM1000B-4T220G/250P-E
VM1000B-4T250G/280P-E
VM1000B-4T280G/315P-E
VM1000B-4T315G/355P-E 1696 426 800 408 398 1266 520 12
VM1000B-4T355G/400P-E
VM1000B-4T400G-E
PDF download
Control features Control Mode V/F Control; Sensorless Vector Control (SVC); Torque Control
Starting Torque G Type: 0.5Hz/150 % (SVC); P Type: 0.5Hz/100%
Speed Adjustment Range 1 : 100 (SVC)
Speed Control Precision ± 0.5 % (SVC)
Overload Protection G Type: 150 % rated current for 60s ; 180 % rated current for 1s
P Type: 120 % rated current for 60s ; 150 % rated current for 1s
Input/output Input Voltage 220V/380V±15%
Input Frequency 50/60Hz, fluctuation range: ±5%
Output Voltage 0-rated input voltage
Output Frequency SVC: 0~320Hz, V/F: 0~1000Hz
Input/output Terminals Analog Input 2-way
Digital Input 6-way
Analog Output 2-way
Digital Output 1-way
Relay Output 2-way
RS485 Communication Terminal 1-way
Power Supply 2-way, 1-way10V,1-way 24V
Application environment Attitude Lower than 1000m, derated 1% for every 100m above 1000m
Environment Temperature  -10℃～+ 40℃（necessary to derate for 40℃～ 50℃）
Humidity ≤95%RH, no water condensation
Vibration ＜5.9m/s2（0.6g）
Storage Temperature  -40℃～＋60℃
Tip
VM1000B Series General Purpose & High Performance Variable Frequency Drives
Field No. Identification Description
Product series ① Product series VM1000B: general vector series
Voltage grade ② Voltage grade 2: 220VAC；
4: 380VAC
The input power ③ Power phase identification S: single ；
T: three-phase
Rated power 1 ④ The power range of G type 18R5：18.5kW，R is the decimal point
G—Constant torque load
B—Built-in brake unit
Rated power 2 ⑤ The power range of P type 022：22kW
P—Variable torque load
B—Built-in brake unit
Product model suffix ⑥ Supported language English
