PDS33 Solar PV Water Pump with Variable Frequency Drive

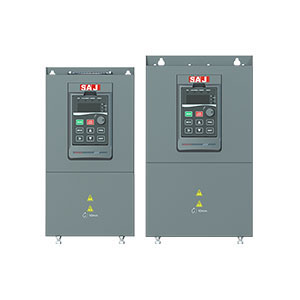

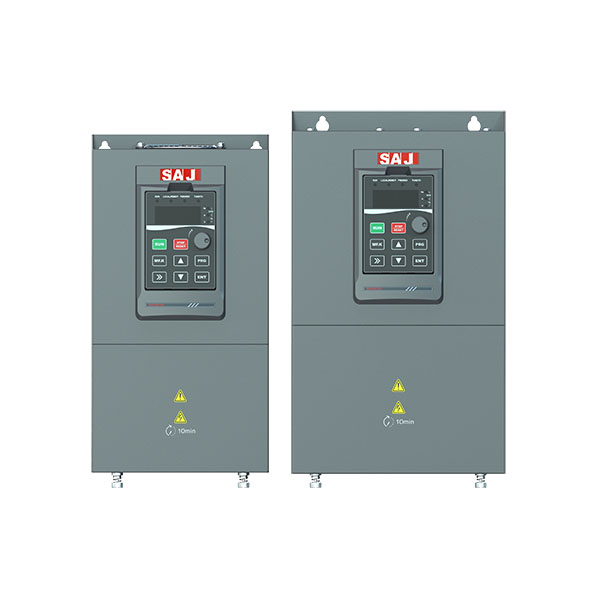

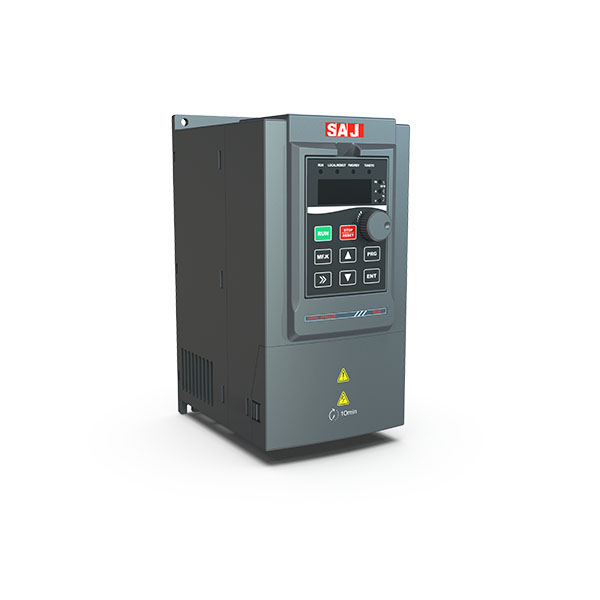

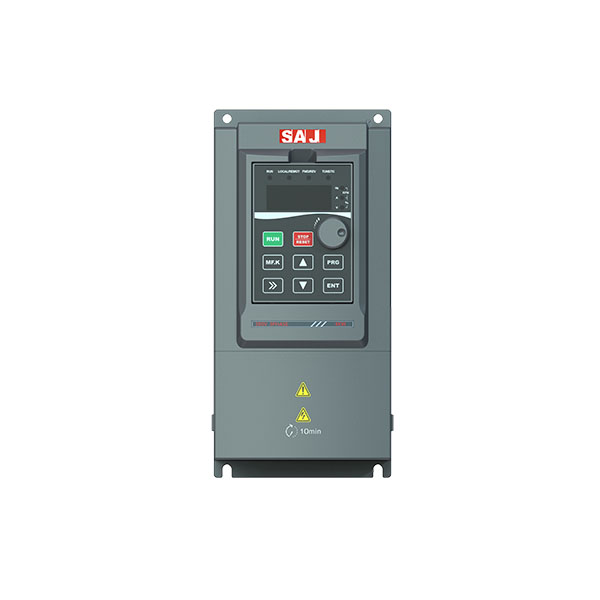

PDS33 Series Solar Pump Controller

Solar pump controller is a critical component used in solar water pump system. Coupled with other components including solar cell array, combiner box and solar water pump, the solar water pump system is mainly used for water supply applications in areas where water source and power supply is not accessible.

Power Range

280VDC-360VDC input: 2.2kW
500VDC-750VDC input: 2.2-110kW

Features

Flexibility
Compatible with IEC standard three-phase asynchronous motors
Compatible with mainstream photovoltaic modules
Switchable to grid power input
Intelligence
Adaptive MPPT (maximum power point tracking) technology, efficiency up to 99%
Automatic adjustment of water amount
Adaptive motor power
High cost-effective performance
Out-of-the-box system design
Built-in pump motor protection function
Battery-free design, suitable for various applications
Easy to maintain
Reliability
State-of-the-art technology of motor and pump drive, with 10 year experience in market application
Soft starting function solves the problem of water hammer, prolonging the service life
Built-in intelligent IGBT module, system simplification design, improving system reliability
Built-in protection function for overvoltage, overload, overheat and dry-running
Remote control
Standard RS-485 interface
Optional GPRS module for remote monitoring
Can monitor solar water pump system anytime and anywhere
Accessible to historical parameters of solar water pump system
Support PC web terminal, Android/iOS monitoring APP

Case Studies

Applicable to farmland irrigation, desert control, rural water supply, and seawater desalination in remote areas

Specifications

PDS33 Series Product Parameters
Input Parameters	Solar array input
	Maximum Input Voltage (Voc)[V]	450V DC / 800V DC
	Recommended MPPT Voltage Range (Vmp)	275~380V DC / 500V DC~700V DC
	Recommended MPPT Power Range (KW)	2.7~3.5 / 2.7~3.5 / 4.5~6.4 / 6.6~8.8 / 9~12 / 13.2~17.6 / 18~24 / 22.2~29.6 / 26.4～35.2 / 36～48 / 44～59.2 / 54～72 / 66～88 / 90～120 / 112～149 / 132～176
	Standby AC Generator
	Maximum Current (RMS)[A]	23 / 5.8 / 10.5 / 14.6 / 20.5 / 26 / 35 / 38.5 / 46.5 / 62 / 76 / 92 / 113 / 157 / 180 / 214
Output Parameters	Rated Output Power[KW]	2.2 / 2.2 / 4 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37 / 45 / 55 / 75 / 93 / 110
	Rated Output Voltage[V]	220V AC（±15%）Three phase / 380V AC(±15%) Three phase
	Maximum Current (RMS)[A]	9.6 / 5.1 / 9 / 13 / 17 / 25 / 32 / 37 / 46.5 / 62 / 76 / 92 / 112 / 150 / 176 / 210
	Output Frequency	0-50Hz/60Hz
Protection	Lightning Protection	Built-in
	Overvoltage Protection	Built-in
	Undervoltage Protection	Built-in
	Motor Stuck Protection	Built-in
	Output Phase Loss Protection	Built-in
	Short Circuit Protection	Built-in
	Overheating Protection	Built-in
	Dry Run Protection	Built-in
Communication	RS-485 Communication Interface	Standard RS 485, Modbus protocol
General Parameters	Working Temperature Range	-20℃～+60℃; >45℃, deloading operation
	Cooling Method	Forced air cooling
	Allowable Ambient Humidity	≦95%RH
	Standard Warranty (monthly)	18
	Certification Standards	IEC/EN 61800-5-1,IEC/EN 61800-2:2004,IEC/EN 61800-3:2004,CE
	Models	PDS33-2S2R2-E / PDS33-4T2R2-E / PDS33-4T004-E / PDS33-4T5R5-E / PDS33-4T7R5-E / PDS33-4T011-E / PDS33-4T015-E / PDS33-4T18R5-E / PDS33-4T022-E / PDS33-4T030-E / PDS33-4T037-E / PDS33-4T045-E / PDS33-4T055-E / PDS33-4T075-E /PDS33-4T093-E / PDS33-4T110-E
Standby AC Generator	Input Voltage	220V AC（±15%）Single Phase / 380V AC(±15%) Three Phase
Standby AC Generator	Generator Capacity [kVA]	4 / 4 / 5.9 / 8.9 / 11 / 17 / 21 / 24 / 30 / 40 / 57 / 69 / 85 / 114 / 134 / 160

Model

No.	Model	Description
1	PDS33-2S2R2-E	Single phase 220V(±15%) AC input, or 275-380V DC input, rated power three phase 220V(±15%) AC output, 2.2KW
2	PDS33-4T2R2-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 2.2KW
3	PDS33-4T004-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 3.7KW
4	PDS33-4T5R5-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 5.5KW
5	PDS33-4T7R5-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 7.5KW
6	PDS33-4T011-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 11KW
7	PDS33-4T015-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 15KW
8	PDS33-4T18R5-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 18.5KW
9	PDS33-4T022-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 22KW
10	PDS33-4T030-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 30KW
11	PDS33-4T037-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 37KW
12	PDS33-4T045-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 45KW
13	PDS33-4T055-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 55KW
14	PDS33-4T075-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 75KW
15	PDS33-4T093-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 93KW
16	PDS33-4T110-E	Three phase 380V(±15%) AC input, or 500-750V DC input, rated power three phase 380V(±15%) AC output, 110KW
